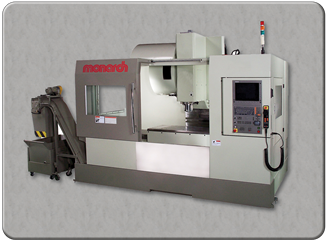

High speed, small frame machining center with up to a 15,000 rpm spindle and traverse rates up to 1250 ipm. 40 taper direct drive spindle assemblies.
Axis Travels
Inch
Metric
Travel in X Axis
43.3"
1,099 mm
Travel in Y Axis
23.6"
600 mm
Travel in Z Axis
20"
508 mm
Work Area
Work Area in X Axis
51.2"
1,300 mm
Work Area in Y Axis
23.6
Spindle Nose to Table(max)
24.8"
630 mm
Spindle Nose to Table(min)
4.7"
120 mm
Table Load (max)
2,200 lbs
1,000 kg
Axis Specifications
Feed Rate - X axis
590 ipm
15 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1259 ipm
32 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Spindle Information
40 Taper
Spindle Speed Ranges
10,000 rpm
Spindle Chuck Taper
Cat 40
Spindle Drive HP
20 hp / 15 kw
Max Torque (Std)
93 ft lbs / 126 nm
Drive System
Direct
Tool Changer
Tool Storage Capacity
24 (40 Optional)
Max Dia.(at full capacity)
3.1" / 79 mm
Max Dia.(Adjacent Empty)
7.3" / 185 mm
Max. Length of tool stored
11.8" / 300 mm
Tool Weight (Max)
17 lbs / 7.7 kg
Tool-to-Tool (avg)
2.5 sec
General
Floor Space Requirement
173" x 88.6"
4,394 x 2,260 mm
Height (Maximum)
115"
2,921 mm
Shipping Weight
18,040 lbs
8,182 kg
