VMC 2855 / 3060 / 3572
QP

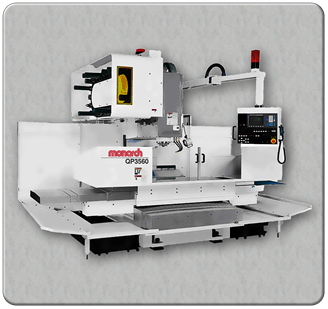

Designed using 4 hardened square ways the VMC-2855QP, VMC-3560QP & VMC-3572QP machine bases provide the most rigid support for X axis and Y axis loading. The oversized column footprint provides maximum support for both the standard 20 HP belt driven spindle or the optional higher torque 30 HP spindle with 2 speed ZF gearbox. A large inside work area provides ample room for work piece loading and unloading.

Detailed Specifications

VMC-2855 QP

Axis
Travels
Work
Area
Axis
Specs
Spindle
Info
Tool
Changer
General

Axis Travels	Inch	Metric
Travel in X Axis	55"	1400 mm
Travel in Y Axis	27.5"	700 mm
Travel in Z Axis	24"	600 mm

Work Area	Inch	Metric
Work Area in X Axis	60"	1500 mm
Work Area in Y Axis	26"	650 mm
Spindle Nose to Table(max)	29.5"	750 mm
Spindle Nose to Table(min)	5.9"	150 mm
Table Load (max)	3520 lbs	1600 kg

Axis Specifications	Inch	Metric
Feed Rate - X axis	275 ipm	7 mpm
Feed Rate - Y axis	275 ipm	7 mpm
Feed Rate - Z axis	275 ipm	7 mpm
Traverse Rate - X axis	590 ipm	15 mpm
Traverse Rate - Y axis	590 ipm	15 mpm
Traverse Rate - Z axis	590 ipm	15 mpm
Positioning (±)	0.0002"	0.005 mm
Repeatability (±)	0.0002"	0.005 mm

Spindle Information
Spindle Speed Ranges	6,000 / 8,000
Spindle Chuck Taper	BT / CAT / DIN 40 or #50
Spindle Diameter	3.54" (90 mm)	3.94" (100 mm)
Drive System	Belt	Gearbox
Spindle Motor HP	20HP	30HP

Tool Changer	BT50 / CT-50 / DIN-50
Tool Storage Capacity	24 / 32
Max Dia.(at full capacity)	4.3" ( 110 mm) / 5" (127 mm)
Max Dia.(Adjacent Empty)	7.9" ( 200 mm) / 9" (229 mm)
Max. Length of tool stored
Tool Weight (Max)	33 lbs / 15 kg
Tool-to-Tool (avg)	5 sec

General	Inch	Metric
Floor Space Requirement	153.5" x 140.5"	3900 x 3570 mm
Height (Maximum)
Shipping Weight	20,020 lbs	9,100 kg

VMC-3560 QP

Axis
Travels
Work
Area
Axis
Specs
Spindle
Info
Tool
Changer
General

Axis Travels	Inch	Metric
Travel in X Axis	60.2"	1530 mm
Travel in Y Axis	35.4"	900 mm
Travel in Z Axis	30"	762 mm

Work Area	Inch	Metric
Work Area in X Axis	66.9"	1700 mm
Work Area in Y Axis	33.9"	860 mm
Spindle Nose to Table(max)	37.9"	962 mm
Spindle Nose to Table(min)	7.9"	200 mm
Table Load (max)	5500 lbs	2500 kg

Axis Specifications	Inch	Metric
Feed Rate - X axis	197 ipm	5 mpm
Feed Rate - Y axis	197 ipm	5 mpm
Feed Rate - Z axis	197 ipm	5 mpm
Traverse Rate - X axis	590 ipm	15 mpm
Traverse Rate - Y axis	590 ipm	15 mpm
Traverse Rate - Z axis	472 ipm	12 mpm
Positioning (±)	0.0002"	0.005 mm
Repeatability (±)	0.0002"	0.005 mm

Spindle Information
Spindle Speed Ranges	6,000 / 8,000
Spindle Chuck Taper	BT / CAT / DIN 40 or #50
Spindle Diameter	3.54" (90 mm)	3.94" (100 mm)
Drive System	Belt	Gearbox
Spindle Motor HP	20HP	30HP

Tool Changer	BT50 / CT-50 / DIN-50
Tool Storage Capacity	24 / 32
Max Dia.(at full capacity)	4.3" ( 110 mm) / 5" (127 mm)
Max Dia.(Adjacent Empty)	7.9" ( 200 mm) / 9" (229 mm)
Max. Length of tool stored
Tool Weight (Max)	33 lbs / 15 kg
Tool-to-Tool (avg)	5 sec

General	Inch	Metric
Floor Space Requirement	169.3" x 143.9"	4,300 x 3,655 mm
Height (Maximum)
Shipping Weight	30,800 lbs	14,000 kg

VMC-3572 QP

Axis
Travels
Work
Area
Axis
Specs
Spindle
Info
Tool
Changer
General

Axis Travels	Inch	Metric
Travel in X Axis	72.8"	1850 mm
Travel in Y Axis	35.4"	900 mm
Travel in Z Axis	30"	762 mm

Work Area	Inch	Metric
Work Area in X Axis	78.7"	2000 mm
Work Area in Y Axis	33.9"	860 mm
Spindle Nose to Table(max)	37"	942 mm
Spindle Nose to Table(min)	7"	180 mm
Table Load (max)	5500 lbs	2500 kg

Axis Specifications	Inch	Metric
Feed Rate - X axis	197 ipm	5 mpm
Feed Rate - Y axis	197 ipm	5 mpm
Feed Rate - Z axis	197 ipm	5 mpm
Traverse Rate - X axis	590 ipm	15 mpm
Traverse Rate - Y axis	590 ipm	15 mpm
Traverse Rate - Z axis	472 ipm	12 mpm
Positioning (±)	0.0002"	0.005 mm
Repeatability (±)	0.0002"	0.005 mm

Spindle Information
Spindle Speed Ranges	6,000 / 8,000
Spindle Chuck Taper	BT / CAT / DIN 40 or #50
Spindle Diameter	3.54" (90 mm)	3.94" (100 mm)
Drive System	Belt	Gearbox
Spindle Motor HP	20HP	30HP

Tool Changer	BT50 / CT-50 / DIN-50
Tool Storage Capacity	24 / 32
Max Dia.(at full capacity)	4.3" ( 110 mm) / 5" (127 mm)
Max Dia.(Adjacent Empty)	7.9" ( 200 mm) / 9" (229 mm)
Max. Length of tool stored
Tool Weight (Max)	33 lbs / 15 kg
Tool-to-Tool (avg)	5 sec

General	Inch	Metric
Floor Space Requirement	200.1" x 143.96"	5,084 x 3,655 mm
Height (Maximum)
Shipping Weight	31,900 lbs	14,500 kg
