VMC-2040
QP





VMC-20

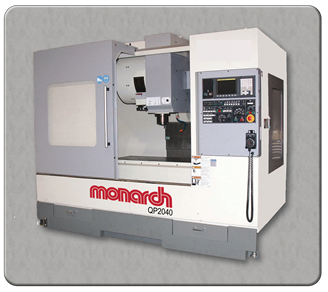

Cast hardened and precision ground tool steel box ways mated to Turcite lined surfaces are used on all axes. These provide maximum vibration damping characteristics and durability for smooth part finishes and a long machine life. XYZ axis travels 40” X 20” X 20”, CT-40 taper, 15 HP, 10,000 RPM spindle standard with options to 15,000 RPM.



Detailed Specifications


VMC-2040 QP
  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

40"

1,000 mm

Travel in Y Axis

21"

533 mm

Travel in Z Axis

20"

508 mm

Work Area

Inch

Metric

Work Area in X Axis

47.2"

1,198 mm

Work Area in Y Axis

20"

508 mm

Spindle Nose to Table(max)

25.2"

640 mm

Spindle Nose to Table(min)

5.9"

150 mm

Table Load (max)

1,320 lbs

600 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

300 ipm

7.62 mpm

Feed Rate - Y axis

300 ipm

7.62 mpm

Feed Rate - Z axis

300 ipm

7.62 mpm

Traverse Rate - X axis

945 ipm

24 mpm

Traverse Rate - Y axis

945 ipm

24 mpm

Traverse Rate - Z axis

708 ipm

18 mpm

Positioning (±)

0.00025"

0.0063 mm

Repeatability (±)

0.00015"

0.0038 mm

Spindle Information

40 Taper

Spindle Speed Ranges

8 / 10 / 12,000 Belt ( 12, 15,000 direct)

Spindle Chuck Taper

40

Spindle Drive HP

20 hp / 15 kw

Max Torque (Std)

51 ft lbs (200 ft lbs) / 69 nm (271 nm)

Drive System

Belt (Direct / ZF)

Tool Changer

40 Taper

Tool Storage Capacity

24 / 32

Max Dia.(at full capacity)

4.3" / 109 mm

Max Dia.(Adjacent Empty)

3" / 76 mm

Max. Length of tool stored

11" / 279 mm

Tool Weight (Max)

15 lbs / 7 kg

Tool-to-Tool (avg)

1.8 sec

General

Inch

Metric

Floor Space Requirement

108" x 82"

2,743 x 2,050 mm

Height (Maximum)

101"

2,565 mm

Shipping Weight

13,700 lbs

6,227 kg
