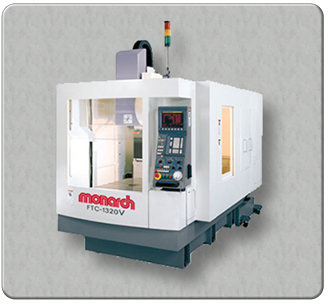

Travel in X Axis

19.7"

500 mm

Travel in Y Axis

12.6"

320 mm

Travel in Z Axis

12.8"

325 mm

Work Area in X Axis

25.6"

650 mm

Work Area in Y Axis

14.4"

365 mm

Spindle Nose to Table(max)

24.8"

630 mm

Spindle Nose to Table(min)

11.8"

300 mm

Table Load (max)

264 lbs (Per Side)

120 kg (Per Side)

Feed Rate - X axis

400 ipm

10.16 mpm

Feed Rate - Y axis

400 ipm

10.16 mpm

Feed Rate - Z axis

400 ipm

10.16 mpm

Traverse Rate - X axis

1417 ipm

36 mpm

Traverse Rate - Y axis

1417 ipm

36 mpm

Traverse Rate - Z axis

1181 ipm

30 mpm

Positioning (±)

0.0002"

0.005 mm

Repeatability (±)

0.00015"

0.0038 mm

Spindle Speed Ranges

15,000 (10,000)

Spindle Chuck Taper

BT 30

Spindle Drive HP

5 hp / 3.7 kw (7.5 hp / 5.6 kw)

Max Torque (Std)

8.7 ft lbs / 11.7 nm

Drive System

Direct

Tool Storage Capacity

16

Max Dia.(at full capacity)

2.36" / 60 mm

Max. Length of tool stored

7.8" / 200 mm

Tool Weight (Max)

4.4 lbs / 2 kg

Tool-to-Tool (avg)

1 sec

Floor Space Requirement

61" x 131"

1,550 x 3,327 mm

Height (Maximum)

95"

2,413 mm

Shipping Weight

8,200 lbs

3,720 kg
