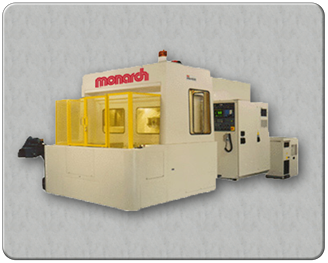

500 mm Series horizontal with 2 position rotary pallet system as a standard machine component. 40 or 50 taper spindle versions are available with tool storage capacities up to 120 tools.
Axis Travels
Inch
Metric
Travel in X Axis
28.3"
718 mm
Travel in Y Axis
25.6"
650 mm
Travel in Z Axis
Work Area
Work Area in X Axis
19.6"
500 mm
Work Area in Y Axis
Spindle Nose to Table(max)
34.6"
878 mm
Spindle Nose to Table(min)
6.2"
158 mm
Table Load (max)
1320 lbs
598 kg
Axis Specifications
Feed Rate - X axis
300 ipm
7.6 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1418 ipm
36 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.00015"
0.0025 mm
Pallet Size
19.7" x 19.7"
500 mm x 500 mm
Spindle Information
40 Taper
50 Taper
Spindle Speed Ranges
12,000 rpm
10,000 rpm
Spindle Chuck Taper
Cat 40
Cat 50
Spindle Drive HP
35 hp / 26 kw
Max Torque (Std)
281 ft lbs / 381 nm
Drive System
Direct
Tool Changer
Tool Storage Capacity
40 (60, 90 , 120)
40 (60, 90, 120)
Max Dia.(at full capacity)
4.9" / 124 mm
3.9" / 99 mm
Max Dia.(Adjacent Empty)
3.9" / 100 mm
Max. Length of tool stored
11.8" / 300 mm
Tool Weight (Max)
15.4 lbs / 7 kg
39.6 lbs / 18 kg
Tool-to-Tool (avg)
3.5 sec
General
Floor Space Requirement
173" x 216"
4,394 x 5,486 mm
Height (Maximum)
114"
2,896 mm
Shipping Weight
26,400 / 30,800 lbs
11,974 / 13,970 kg
