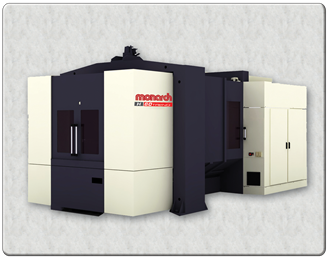

Travel in X Axis

55.1"

1,400 mm

Travel in Y Axis

41.3"

1,050 mm

Travel in Z Axis

47.2"

1,200 mm

Rotary Axis ('B') Travel

360°

Work Area in X Axis

39.3"

1000 mm

Work Area in Y Axis

31.4"

800 mm

Spindle Nose to Table(max)

51.1"

1,300 mm

Spindle Nose to Table(min)

1.97"

50 mm

Table Load (max)

5,511 lbs

2,500 kg

Feed Rate - X axis

1,968 ipm

50 mpm

Feed Rate - Y axis

1,968 ipm

50 mpm

Feed Rate - Z axis

1,968 ipm

50 mpm

Traverse Rate - X axis

1,968 ipm

50 mpm

Traverse Rate - Y axis

1,968 ipm

50 mpm

Traverse Rate - Z axis

1,968 ipm

50 mpm

Rotary Axis Speed

40 rpm

Positioning (±)

0.0002"

0.005 mm

Repeatability (±)

0.0001"

0.0025 mm

Rotary Positioning

6 sec

Rotary Repeatablility

3 sec

Pallet Size

39.3" x 31.4"

1,000 mm x 800 mm

Pallet Exchange Time

20 sec

Spindle Speed Ranges

8,000 rpm (10,000)

Spindle Chuck Taper

50 BIG Plus

Spindle Drive HP

33.5 hp / 25 kw

Max Torque (Std)

288 ft lbs / 526 nm

Drive System

Planetary Gearbox

Tool Storage Capacity

56 (76,96,244)

Max Dia.(at full capacity)

Max Dia.(Adjacent Empty)

9.8" / 250 mm

Max. Length of tool stored

193.6" / 500 mm

Tool Weight (Max)

55.1 lbs / 30 kg

Tool-to-Tool (avg)

8 sec

Floor Space Requirement

314" x 169.2"

8,000 x 4,300 mm

Height (Maximum)

143.7"

3,650 mm

Shipping Weight

73,855 lbs

33,500 kg
