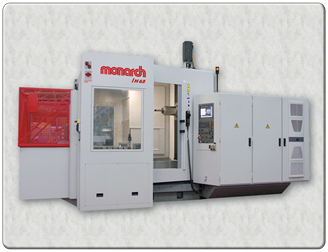

630 mm size horizontal with two position side by side pallet changer system. Available as a geared head version, belt drive or motor spindle with speeds up to 18,000 rpm.
Axis Travels
Inch
Metric
Travel in X Axis
39.7"
1,010 mm
Travel in Y Axis
31.5"
800 mm
Travel in Z Axis
Rotary Axis ('B') Travel
360°
Work Area
Work Area in X Axis
Work Area in Y Axis
24.8"
630 mm
Spindle Nose to Table(max)
47.6"
1,210 mm
Spindle Nose to Table(min)
7.8"
200 mm
Table Load (max)
5,511 lbs
2,500 kg
Axis Specifications
Feed Rate - X axis
590 ipm
15 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,574 ipm
40 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Rotary Axis Speed
7.5 Seconds for 360°
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Rotary Positioning
6 sec
Rotary Repeatablility
3 sec
Pallet Size
31.5" x 24.8"
800 mm x 630 mm
Pallet Exchange Time
25 sec
Spindle Information
50 Taper
Spindle Speed Ranges
8,000 rpm
Spindle Chuck Taper
SK 50 (cat 50)
Spindle Drive HP
33.5 hp / 25 kw
Max Torque (Std)
450 ft lbs / 611 nm
Drive System
2 Gear Gearbox + Belt Transmission
Tool Changer
SK50 Taper
Tool Storage Capacity
102 (121)
Max Dia.(at full capacity)
4.9" / 125 mm
Max Dia.(Adjacent Empty)
15.7" / 400 mm
Max. Length of tool stored
17.7" / 450 mm
Tool Weight (Max)
55.1 lbs / 25 kg
Tool-to-Tool (avg)
8 sec
General
Floor Space Requirement
256.9" x 185"
6,526 x 4,698 mm
Height (Maximum)
142.4"
3,615 mm
Shipping Weight
38,326 lbs
17,384 kg
