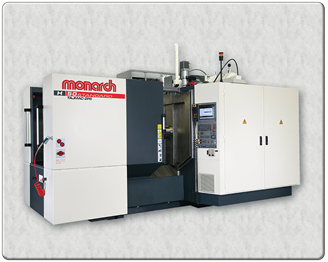

500 mm series horizontal with 2 position rotary pallet system as standard. Available as a geared head version, belt drive or motor spindle with speeds up to 18,000 rpm.
Axis Travels
Inch
Metric
Travel in X Axis
29.5"
750 mm
Travel in Y Axis
27.5"
700 mm
Travel in Z Axis
30.3"
770 mm
Rotary Axis ('B') Travel
360°
Work Area
Work Area in X Axis
19.7"
500 mm
Work Area in Y Axis
Spindle Nose to Table(max)
35.43"
900 mm
Spindle Nose to Table(min)
5.12"
130 mm
Table Load (max)
1,763 lbs
800 kg
Axis Specifications
Feed Rate - X axis
590 ipm
15 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,968 ipm
50 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Rotary Axis Speed
9.5 Seconds for 360°
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Rotary Positioning
6 sec
Rotary Repeatablility
3 sec
Pallet Size
19.7" x 19.7"
500 mm x 500 mm
Pallet Exchange Time
10 sec
Spindle Information
50 Taper
Spindle Speed Ranges
8,000 rpm
Spindle Chuck Taper
SK 50 (cat 50)
Spindle Drive HP
24.8 hp / 18.5 kw
Max Torque (Std)
416 ft lbs / 565 nm
Drive System
2 Gear Gearbox + Belt Transmission
Tool Changer
Tool Storage Capacity
56
Max Dia.(at full capacity)
4.9" / 125 mm
Max Dia.(Adjacent Empty)
9.84" / 250 mm
Max. Length of tool stored
17.7" / 450 mm
Tool Weight (Max)
55.1 lbs / 25 kg
Tool-to-Tool (avg)
3.1 sec
General
Floor Space Requirement
314.5" x 128"
7,990 x 3,250 mm
Height (Maximum)
128.3"
3,260 mm
Shipping Weight
30,865 lbs
14,000 kg
