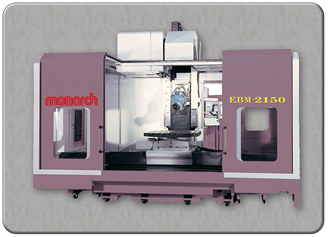

Travel in X Axis

84"

2,133 mm

Travel in Y Axis

55"

1,397 mm

Travel in Z Axis

43"

1,092 mm

Work Area in X Axis

86"

2,184 mm

Work Area in Y Axis

34.4" (55")

873 mm (1,297 mm)

Spindle Nose to Table(max)

33.5"

850 mm

Spindle Nose to Table(min)

*-9.8"

*-250 mm

Table Load (max)

5,500 lbs

2,494 kg

Feed Rate - X axis

200 ipm

5 mpm

Feed Rate - Y axis

200 ipm

5 mpm

Feed Rate - Z axis

200 ipm

5 mpm

Traverse Rate - X axis

400 ipm (600)

10 mpm (15 mpm)

Traverse Rate - Y axis

400 ipm (600)

10 mpm (15 mpm)

Traverse Rate - Z axis

400 ipm (600)

10 mpm (15 mpm)

Positioning (±)

0.00025"

0.00635 mm

Repeatability (±)

0.00015"

0.00381 mm

Spindle Speed Ranges

4,000 rpm (6,000 Optional)

Spindle Chuck Taper

Cat 50

Spindle Drive HP

20 hp (30) / 15 kw (22)

Max Torque (Std)

300 ft lbs / 406 nm

Drive System

Planetary Gearbox

Tool Storage Capacity

32 (40, 60 Optional)

Max Dia.(at full capacity)

9.8" / 250 mm

Max Dia.(Adjacent Empty)

9.8"/ 250 mm

Max. Length of tool stored

11.8" / 300 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)

3.5 sec

Floor Space Requirement

Call

Call

Height (Maximum)

Call

Call

Shipping Weight

46,200 lbs

20,955 kg
