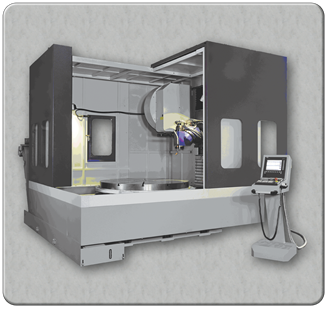

FBE YCZ Machining Center










This machine consists of a sliding ram Y axis and a vertical travel Z axis saddle over a full contouring rotary table, for manufacturer of large ring-like parts. An automatic vertical/horizontal spindle allows milling, drilling, boring and tapping operations to be performed in order to complete complex parts during a single load cycle.



Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Rotary Table

360 degree full contouring

Travel in Y Axis

39.3"

1000 mm

Travel in Z Axis

31.4"

800 mm

Work Area

Inch

Metric

Surface Area (Dia.)

64.9"

1650 mm

Table Load (max)

17600 lbs

8000 kg

Axis Specifications

Inch

Metric

Feed Rate - Rotary



Feed Rate - Y axis

314 ipm

8 mpm

Feed Rate - Z axis

314 ipm

8 mpm

Traverse Rate - Rotary





Traverse Rate - Y axis

393 ipm

10 mpm

Traverse Rate - Z axis

393 ipm

10 mpm

Positioning (±)

0.0003"

0.00762 mm

Repeatability (±)

0.00015"

0.00381 mm

Spindle Information

50 Taper

Spindle Speed Ranges

3500 rpm

Spindle Chuck Taper

Cat 50

Spindle Drive HP

29 hp / 22 kw

Max Torque (Std)

480 ft lbs / 650 nm

Tool Changer

50 Taper

Tool Storage Capacity

24

Max Dia.(at full capacity)

9.84" / 250 mm

Max. Length of tool stored

11.8" / 300 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)

4.5 sec

General

Inch

Metric

Shipping Weight

39,000 lbs

17,690 kg
