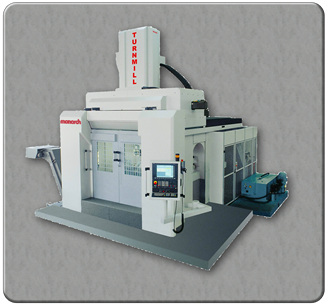

Monarch offers the TM-1250 Turnmill which features an 80 hp turning table with "C" axis capability as well as machining center axis with a 50 hp main spindle and 10 interchangeable heads and 55 available tool storage pockets.
Axis Travels
Inch
Metric
Travel in X Axis
55"
1,397 mm
Travel in Y Axis
59"
1,500 mm
Travel in Z Axis
49.2"
1,250 mm
Work Area
Work Area in X Axis
55.1"
1,400 mm
Work Area in Y Axis
Maximum Swing
Spindle Nose to Table(max)
Spindle Nose to Table(min)
9.8"
250 mm
Table Load (max)
13.200 lbs
6,000 kg
Axis Specifications
Feed Rate - X axis
787 ipm
20 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,181 ipm
30 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0004"
0.012 mm
Repeatability (±)
0.0002"
0.006 mm
Spindle Information
Spindle Speed Ranges
6,500
Spindle Chuck Taper
50
Spindle Drive HP
50 hp / 38 kw
Max Torque (Std)
221 ft lbs / 300 nm (283 ft lbs / 384 nm)
Drive System
motor spindle
Tool Changer
Tool Storage Capacity
45
Max Dia.(at full capacity)
4.9" / 125 mm
Max Dia.(Adjacent Empty)
9.8" / 250 mm
Max. Length of tool stored
13.7" / 350 mm
Tool Weight (Max)
44.1 lbs / 20 kg
Tool-to-Tool (avg)
25 sec
General
Floor Space Requirement
244" x 246"
6,200 x 6,250 mm
Height (Maximum)
216"
5,500 mm
Shipping Weight
77,200 lbs
35,000 kg
