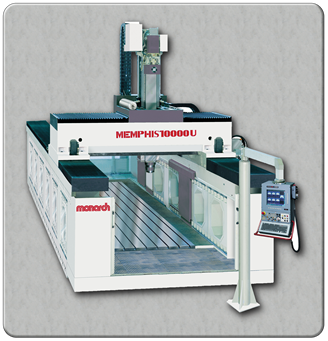

Overhead traveling column with X-Axis travels up to 390 inches. Available with multiple spindle heads and automatic head-changing device providing up to a full 5 axis capability.
Axis Travels
Inch
Metric
Travel in X Axis
98" - 452"
2,489 - 11,480 mm
Travel in Y Axis
78" - 118"
1,981 - 3,000 mm
Travel in Z Axis
43"
1,092 mm
Work Area
Work Area in X Axis
By Order
Work Area in Y Axis
Spindle Nose to Table(max)
Spindle Nose to Table(min)
Table Load (max)
20,000 +
9,100 kg +
Axis Specifications
Feed Rate - X axis
787 ipm
20 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1574 ipm
40 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
1181 ipm
Positioning (±)
0.0004"
0.0102 mm
Repeatability (±)
0.0002"
0.005 mm
Spindle Information
50 Taper
HSK
Spindle Speed Ranges
10k - 24k
10k -24k
Spindle Chuck Taper
Cat 50
Spindle Drive HP
Max Torque (Std)
Drive System
Tool Changer
Tool Storage Capacity
Max Dia.(at full capacity)
Max Dia.(Adjacent Empty)
Max. Length of tool stored
Tool Weight (Max)
Tool-to-Tool (avg)
General
Floor Space Requirement
Height (Maximum)
Shipping Weight
