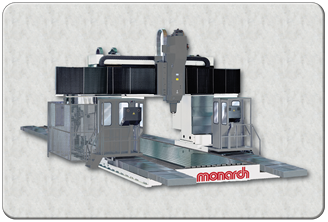

Traveling table, fixed column design. The table can optionally be configured to separate for dual work zones. Travels up to 1000" x 198". Available with multiple heads and automatic head-changing device providing up to a full 5 axis capability.
Axis Travels
Inch
Metric
Travel in X Axis
197" - 1,100"
5,000 - 27,940 mm
Travel in Y Axis
80" - 120"
2,032 - 3,048 mm
Travel in Z Axis
43"
1,092 mm
Work Area
Work Area in X Axis
By Order
Work Area in Y Axis
Spindle Nose to Table(max)
Spindle Nose to Table(min)
Table Load (max)
Axis Specifications
Feed Rate - X axis
393 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
787 ipm
20 mpm
Traverse Rate - Y axis
984 ipm
25 mpm
Traverse Rate - Z axis
Positioning (±)
0.0004"
0.0102 mm
Repeatability (±)
0.0002"
0.005 mm
Spindle Information
Taper
Spindle Speed Ranges
Spindle Chuck Taper
Spindle Drive HP
Max Torque (Std)
Drive System
Tool Changer
Tool Storage Capacity
Max Dia.(at full capacity)
Max Dia.(Adjacent Empty)
Max. Length of tool stored
Tool Weight (Max)
Tool-to-Tool (avg)
General
Floor Space Requirement
Height (Maximum)
Shipping Weight
