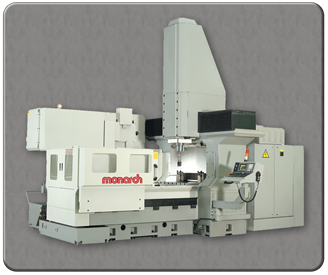

DVM Series





FMCU-AR











Traveling table, double column design with travels from 84" x 84"
up to 197" x 98".





Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

86.6" - 204"

2,148 / 5,181 mm

Travel in Y Axis

47.2" - 90.5"

1,198 / 2,298 mm

Travel in Z Axis

27.5" (35.4")

698 (900) mm

Work Area

Inch

Metric

Work Area in X Axis

By Order

By Order

Work Area in Y Axis

By Order

By Order

Spindle Nose to Table(max)

33.15"

698 mm

Spindle Nose to Table(min)

5.9"

149 mm

Table Load (max)

By Order

By Order

Axis Specifications

Inch

Metric

Feed Rate - X axis

314 ipm

8 mpm

Feed Rate - Y axis

314 ipm

8 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

944 ipm

24 mpm

Traverse Rate - Y axis

944 ipm

24 mpm

Traverse Rate - Z axis

944 ipm

24 mpm

Positioning (±)

0.0002"

0.005 mm

Repeatability (±)

0.0001"

0.0025 mm

Spindle Information



Spindle Speed Ranges

6,000

Spindle Chuck Taper

50

Spindle Drive HP

30 hp / 22 kw

Max Torque (Std)

281 ft lbs / 381.6 nm

Drive System

direct

Tool Changer



Tool Storage Capacity

20 (40, 60, 120)

Max Dia.(at full capacity)

4.7" / 119 mm

Max Dia.(Adjacent Empty)

7.8" / 198 mm

Max. Length of tool stored

13.7" / 347 mm

Tool Weight (Max)

33 lbs / 15 kg

Tool-to-Tool (avg)



General

Inch

Metric

Floor Space Requirement

By Order

By Order

Height (Maximum)

191"

4,851 mm

Shipping Weight

By Order

By Order
