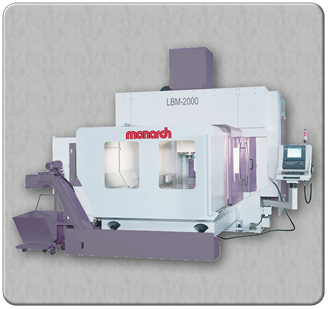

Large one piece twin column casting provides rigidity by eliminating mounting joints. 68.8” between columns to accommodate large fixtures. Roller linear way design with oil/air cooling to reduce heat generated by high contouring rates.
Axis Travels
Inch
Metric
Travel in X Axis
23.6"
600 mm
Travel in Y Axis
43.3"
1100 mm
Travel in Z Axis
19.6"
500 mm
Work Area
Work Area in X Axis
48"
1220 mm
Work Area in Y Axis
Spindle Nose to Table(max)
21"
533 mm
Spindle Nose to Table(min)
1.37"
35 mm
Table Load (max)
3,300 lbs
1,500 kg
Axis Specifications
Feed Rate - X axis
393 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1417 ipm
36 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Spindle Information
40 Taper
Spindle Speed Ranges
15,000 rpm
Spindle Chuck Taper
CT40
Spindle Drive HP
30 hp / 22 kw
Drive System
Motor Spindle
Tool Changer
Tool Storage Capacity
16
Max Diameter
3.14" / 80 mm
Max. Length of tool stored
9.8" / 250 mm
Tool Weight (Max)
26 lbs / 12 kg
Tool-to-Tool (avg)
10 sec
General
Floor Space Requirement
Height (Maximum)
Shipping Weight
24,200 lbs
11,000 kg
68.8"
1750 mm
39.3"
1000 mm
25.5"
650 mm
62.9"
1600 mm
33.8"
860 mm
8.3"
211 mm
4,400 lbs
2,000 kg
1181 ipm
30 mpm
33,000 lbs
15,000 kg
86.6"
2200 mm
82.63"
2100 mm
6,600 lbs
3,000 kg
945 ipm
24 mpm
44,000 lbs
20,000 kg
