VMC RTB

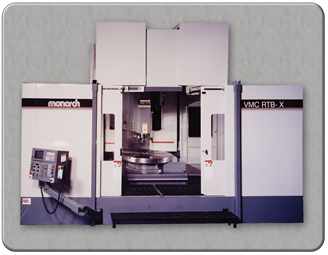

	Shown with optional X-Axis and tilting rotary table.

The standard machine is a Y, Z, C axis machining center with a 50" rotary table as standard. Rotary tables up to 96" in diameter are available. High horsepower, high torque spindle is standard for heavy machining, glass scale feedback is standard as well as chilled oil circulation around the head and spindle for high accuracy applications.

Detailed Specifications

Axis
Travels
Work
Area
Axis
Specs
Spindle
Info
Tool
Changer
General

Axis Travels	Inch	Metric
Rotary Axis	50"	1,270 mm
Travel in X Axis	Optional 48" / 68"	Optional 1,219 mm / 1,727 mm
Travel in Y Axis	30"	762 mm
Travel in Z Axis	40"	1,016 mm

Work Area	Inch	Metric
Work Area in X Axis	50" Rotary	1,270 mm Rotary
Work Area in Y Axis	50" Rotary	1,270 mm Rotary
Spindle Nose to Table(max)	40"	1016 mm
Spindle Nose to Table(min)	0"	0 mm
Table Load (max)	6,000 lbs	2,721 kg

Axis Specifications	Inch	Metric
Feed Rate - X axis	393 ipm	10 mpm
Feed Rate - Y axis	393 ipm	10 mpm
Feed Rate - Z axis	393 ipm	10 mpm
Traverse Rate - X axis	600 ipm	15.24 mpm
Traverse Rate - Y axis	600 ipm	15.24 mpm
Traverse Rate - Z axis	600 ipm	15.24 mpm
Positioning (±)	0.0001"	0.0025 mm
Repeatability (±)	0.0001"	0.0025 mm

Spindle Information	50 Taper
Spindle Speed Ranges	6,000 r.p.m
Spindle Chuck Taper	Cat 50
Spindle Drive HP	50 hp / 37 kw
Max Torque (Std)	550 ft lbs / 667 nm
Drive System	2 Speed Geared Head

Tool Changer	Cat 50
Tool Storage Capacity	40
Max Dia.(at full capacity)	4.9" / 124 mm
Max Dia.(Adjacent Empty)	9.8" / 248 mm
Max. Length of tool stored	15.7" / 398 mm
Tool Weight (Max)	33lbs / 15 kg
Tool-to-Tool (avg)	5 sec

General	Inch	Metric
Floor Space Requirement	230" X 130 "	5,842 X 3,302 mm
Height (Maximum)	144"	3,658 mm
Shipping Weight	35,000 lbs	15,875 kg
