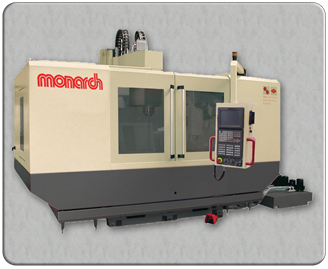

Large, rigid frame machine with wide base assembly and way spacing to prevent axis overhand at the extreme ends of travel. Geared head drive or motor spindle drives up to 24,000 rpm are available.
Axis Travels
Inch
Metric
Travel in X Axis
65"
1650 mm
Travel in Y Axis
32"
812 mm
Travel in Z Axis
Work Area
Work Area in X Axis
70.8"
1800 mm
Work Area in Y Axis
30.7"
780 mm
Spindle Nose to Table(max)
36.2"
920 mm
Spindle Nose to Table(min)
4.3"
110 mm
Table Load (max)
5500 lbs
2495 kg
Axis Specifications
Feed Rate - X axis
393 ipm
10 mpm
Feed Rate - Y axis
Feed Rate - Z axis
Traverse Rate - X axis
1,176 ipm
30 mpm
Traverse Rate - Y axis
Traverse Rate - Z axis
Positioning (±)
0.0002"
0.005 mm
Repeatability (±)
0.0001"
0.0025 mm
Spindle Information
50 Taper
Spindle Speed Ranges
40 - 8,000 (18, 24)
Spindle Chuck Taper
Cat 50 (HSK)
Spindle Drive HP
35 hp / 26 kw
Max Torque (Std)
400 ft lbs / 542 nm
Drive System
Geared Head
Tool Changer
Tool Storage Capacity
24 (40, 55)
Max Dia.(at full capacity)
4.3" / 110 mm
Max Dia.(Adjacent Empty)
7" / 178 mm
Max. Length of tool stored
11.8" / 300 mm
Tool Weight (Max)
33lbs / 15 kg
Tool-to-Tool (avg)
4 sec
General
Floor Space Requirement
239" x 143 "
6070 x 3632 mm
Height (Maximum)
137"
3480 mm
Shipping Weight
31,000 lbs
14,061 kg
