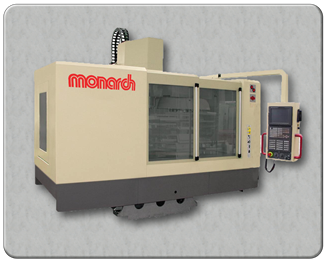

Travel in X Axis

50"

1270 mm

Travel in Y Axis

24"

600 mm

Travel in Z Axis

30"

762 mm

Work Area in X Axis

57"

1440 mm

Work Area in Y Axis

23.2"

580 mm

Spindle Nose to Table(max)

35.8"

909 mm

Spindle Nose to Table(min)

5.9"

150 mm

Table Load (max)

3000 lbs

1360 kg

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

1,176 ipm

30 mpm

Traverse Rate - Y axis

1,176 ipm

30 mpm

Traverse Rate - Z axis

1,176 ipm

30 mpm

Positioning (±)

0.0002"

0.005 mm

Repeatability (±)

0.0001"

0.0025 mm

Spindle Speed Ranges

30 - 12,000

30 - 8,000

Spindle Chuck Taper

Cat 40

Cat 50

Spindle Drive HP

30 hp / 22 kw

35 hp / 26 kw

Max Torque (Std)

118 ft lbs / 160 nm

Drive System

Belt

Geared

Tool Storage Capacity

30

24

Max Dia.(at full capacity)

3.1" / 78 mm

4.3" / 109 mm

Max Dia.(Adjacent Empty)

6" / 152 mm

7" / 177 mm

Max. Length of tool stored

11.8" / 300 mm

Tool Weight (Max)

15 lbs / 6.8 kg

33 lbs / 14.9 kg

Tool-to-Tool (avg)

4 sec

Floor Space Requirement

126" x 84"

3200 x 2134 mm

Height (Maximum)

125"

3,175 mm

Shipping Weight

18,700 lbs

8482 kg
