VMC 200B





VMC-150B-PL

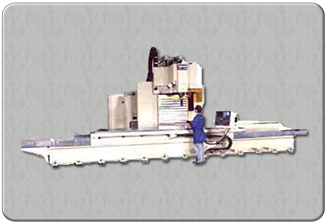

A high horsepower, high torque machining center with very tight accuracy specifications to handle heavy or high accuracy applications. With three available X-Axis travel sizes to handle parts up to 240 inches long.





Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

120" / 160" / 240"

3,048 mm / 4,064 mm / 6,096 mm

Travel in Y Axis

36"

914 mm

Travel in Z Axis

44"

1118 mm

Work Area

Inch

Metric

Work Area in X Axis

120" / 160" / 240"

3,048 mm / 4,064 mm / 6,096 mm

Work Area in Y Axis

36"

914 mm

Spindle Nose to Table(max)

45.7"

1160 mm

Spindle Nose to Table(min)

1.75"

45 mm

Table Load (max)

10,000 lbs

4536 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

600 ipm

15.24 mpm

Traverse Rate - Y axis

600 ipm

15.24 mpm

Traverse Rate - Z axis

600 ipm

15.24 mpm

Thrust Rating X (max)

5,600 ft lbs

7,592 nm

Thrust Rating Y (max)

5,600 ft lbs

7,592 nm

Thrust Rating Z (max)

6,000 ft lbs

8,135 nm

Positioning (±)

0.0001"

0.0025 mm

Repeatability (±)

0.0001"

0.0025 mm

Spindle Information

50 Taper

Spindle Speed Ranges

6000 r.p.m (10,000)

Spindle Chuck Taper

Cat 50

Spindle Drive HP

50 hp / 37 kw

Max Torque (Std)

550 ft lbs / 745 nm

Drive System

2 Speed Geared Head

Tool Changer

50 Taper

Tool Storage Capacity

40

Max Dia.(at full capacity)

4.9" / 124 mm

Max Dia.(Adjacent Empty)

9.8" / 250 mm

Max. Length of tool stored

15.7" / 400 mm

Tool Weight (Max)

33lbs / 15 kg

Tool-to-Tool (avg)

5 sec

General

Inch

Metric

Floor Space Requirement

293" x 214 "

7442 x 5435 mm

Height (Maximum)

156"

3962 mm

Shipping Weight

35,000 lbs

15,876 kg
