VMC 175B

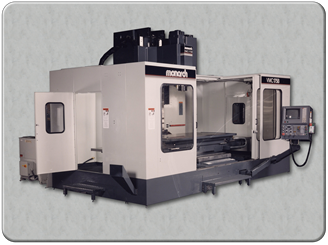

VMC-150B-PL











A high horsepower, high torque machining center with very tight accuracy specifications to handle heavy machining or high accuracy applications.





Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

76"

1,930 mm

Travel in Y Axis

36"

914 mm

Travel in Z Axis

36"

914 mm

Work Area

Inch

Metric

Work Area in X Axis

84.5"

2,146 mm

Work Area in Y Axis

36"

914 mm

Spindle Nose to Table(max)

41" (49")

1041 mm (1,244 mm)

Spindle Nose to Table(min)

5"

127 mm

Table Load (max)

6,000 lbs

2,720 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

600 ipm

15.25 mpm

Traverse Rate - Y axis

600 ipm

15.25 mpm

Traverse Rate - Z axis

600 ipm

15.25 mpm

Thrust Rating X (max)

5,600 ft lbs

7,592 nm

Thrust Rating Y (max)

5,600 ft lbs

7,592 nm

Thrust Rating Z (max)

6,000 ft lbs

8,134 nm

Positioning (±)

0.0001"

0.0025 mm

Repeatability (±)

0.00006"

0.0015 mm

Spindle Information

50 Taper

Spindle Speed Ranges

30 - 6,000 r.p.m (10,000)

Spindle Chuck Taper

Cat 50

Spindle Drive HP

50 hp / 37 kw

Max Torque (Std)

550 ft lbs / 745 nm

Drive System

2 Sd Gearbox

Tool Changer

50 Taper

Tool Storage Capacity

40

Max Dia.(at full capacity)

4.9" / 124 mm

Max Dia.(Adjacent Empty)

9.8" / 248 mm

Max. Length of tool stored

15.7" / 398 mm

Tool Weight (Max)

33lbs / 15 kg

Tool-to-Tool (avg)

5 sec

General

Inch

Metric

Floor Space Requirement

261" X 245"

6,629 x 6,223 mm

Height (Maximum)

138"

3,505 mm

Shipping Weight

35,000 lbs

15,876 kg
