VMC 150B





VMC-150B

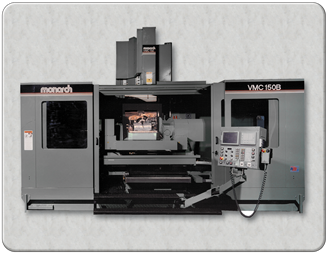

Note: Shown with optional rotary / tilt table installed.








A high horsepower, high torque machining center with very tight accuracy specifications to handle heavy machining or high accuracy applications.





Detailed Specifications


  • Axis
    Travels
  • Work
    Area
  • Axis
    Specs
  • Spindle
    Info
  • Tool
    Changer
  • General

Axis Travels

Inch

Metric

Travel in X Axis

50"

1270 mm

Travel in Y Axis

36"

914.4 mm

Travel in Z Axis

36"

914.4 mm

Work Area

Inch

Metric

Work Area in X Axis

60"

1524 mm

Work Area in Y Axis

36"

914.4 mm

Spindle Nose to Table(max)

41" (49")

1041 mm (1,244 mm)

Spindle Nose to Table(min)

5"

127 mm

Table Load (max)

4000 lbs

1815 kg

Axis Specifications

Inch

Metric

Feed Rate - X axis

393 ipm

10 mpm

Feed Rate - Y axis

393 ipm

10 mpm

Feed Rate - Z axis

393 ipm

10 mpm

Traverse Rate - X axis

600 ipm

15.25 mpm

Traverse Rate - Y axis

600 ipm

15.25 mpm

Traverse Rate - Z axis

600 ipm

15.25 mpm

Thrust Rating X (max)

5,600 lbf

7,592 nm

Thrust Rating Y (max)

5,600 lbf

7,592 nm

Thrust Rating Z (max)

6,000 lbf

8,134 nm

Positioning (±)

0.0001"

0.0025 mm

Repeatability (±)

0.00006"

0.0015 mm

Spindle Information

50 Taper

Spindle Speed Ranges

6,000 r.p.m (10,000)

Spindle Chuck Taper

Cat 50

Spindle Drive HP

50 hp / 37 kw

Max Torque (Std)

550 ft/lbs / 745 nm

Drive System

2 Spd Gearbox

Tool Changer

50 Taper

Tool Storage Capacity

40

Max Dia.(at full capacity)

4.9" / 124 mm

Max Dia.(Adjacent Empty)

9.8" / 248 mm

Max. Length of tool stored

15.7" / 398 mm

Tool Weight (Max)

33lbs / 15 kg

Tool-to-Tool (avg)

5 sec

General

Inch

Metric

Floor Space Requirement

234" x 206"

5,944 x 5,232 mm

Height (Maximum)

138"

3,505 mm

Shipping Weight

30,000 lbs

13,608 kg
